T-D Series: Tyne Drill

View the Brochure
Tyne Drill.png

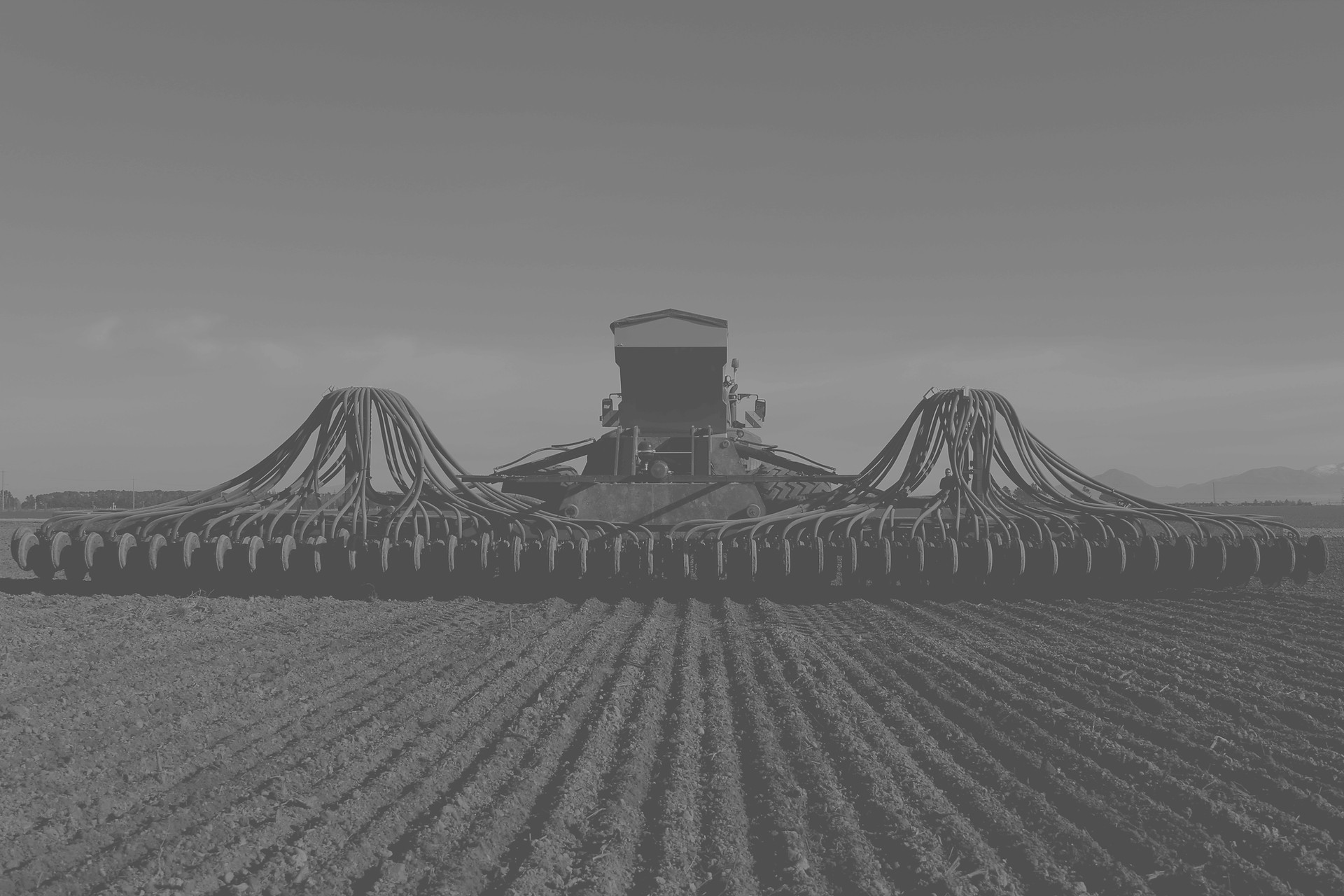

Entry Level Tyne Direct Drill

Features:

  • 3m - 6m wide, hydraulic folding to 3m transport width

  • 5" or 6" row spacing

  • Proven Baker T-Boot system

  • Touchscreen rate controller with GPS coverage mapping standard

  • Various bin options: fertiliser, small seed & slug bait

  • Optional rubber suspended disc openers with NO greasing!

  • Hydraulic accumulator downforce on folding wings

T-D Series: Specifications
T-D Series: Optional Extras
T-D Series
T-D Series

press to zoom
T-D Series
T-D Series

press to zoom
T-D Series
T-D Series

press to zoom
T-D Series
T-D Series

press to zoom
1/8

Sowing Width

Options

                    5"        6"

T-D 3000 = 3.0m / 3.0m

T-D 3500 = 3.5m / 3.5m

T-D 4000 = 4.0m / 4.0m

T-D 4500 = 4.5m / 4.5m

T-D 5000 = 5.0m / 4.8m

T-D 6000 = 6.0m / 6.0m

Row Spacings/No of Runs

                       5"         6"

T-D 3000 = 24 run / 20 run

T-D 3500 = 28 run / 24 run

T-D 4000 = 32 run / 26 run

T-D 4500 = 36 run / 30 run

T-D 5000 = 40 run / 32 run

T-D 6000 = 48 run / 40 run

​

Hopper Capacities

T-D 3000 = 750 Seed / 750 Fert

T-D 3500 = 750 Seed / 750 Fert

T-D 4000 = 1000 Seed / 1200 Fert

T-D 4500 = 1000 Seed / 1200 Fert

T-D 5000 = 1000 Seed / 1200 Fert

T-D 6000 = 1000 Seed / 1200 Fert

​

Minimum Horsepower

Required

                    5"         6"

T-D 3000 = 100hp / 90hp

T-D 3500 = 110hp / 100hp

T-D 4000 = 120hp / 110hp

T-D 4500 = 130hp / 120hp

T-D 5000 = 140hp / 130hp

T-D 6000 = 165hp / 150hp

Tare Weights

incl. Disc Openers

                       5"          6"

T-D 3000 = 2100kg / 2000kg

T-D 3500 = 2400kg / 2300kg

T-D 4000 = 4000kg / 3800kg

T-D 4500 = 4300kg / 4100kg

T-D 5000 = 4700kg / 4400kg

T-D 6000 = 5200kg / 4900kg
